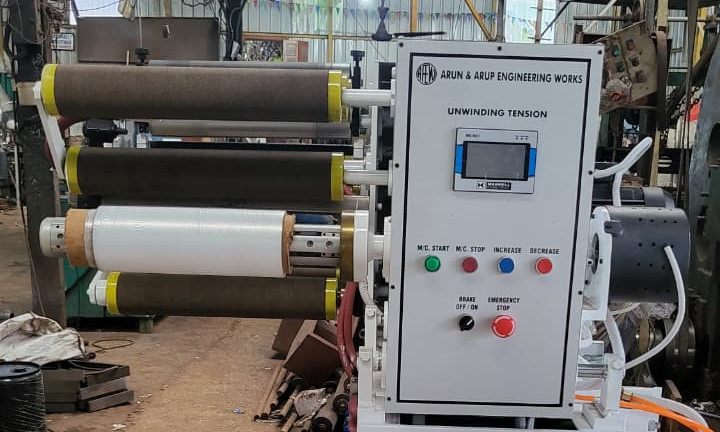

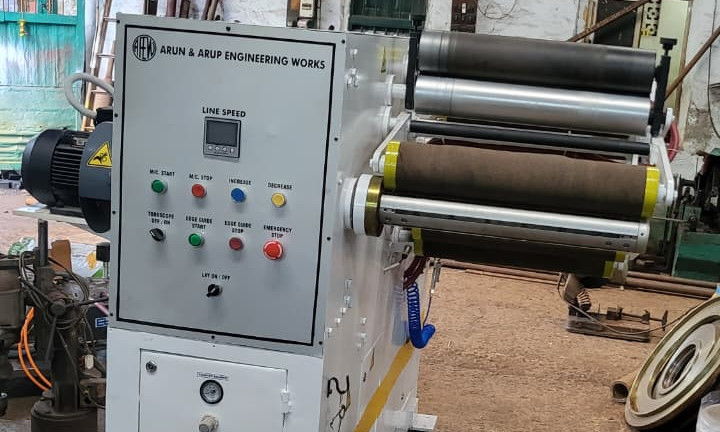

ROLL TO ROLL REWINDING MACHINE

Technical Specification



* Web Width 250 mm to 650 mm

* Maximum Machine speed - 150 Meter per minute

* Maximum Reel wigh - 60 kg

* Guide Roller are Dynamically Balanced and Diameter of the same is 75 mm .

* Super structure made Mild steel

* Rubber Cork Material is installed on  every roller for Avoid Slippage

* T G Feedback for constant speed.

* Rewinding system , Which is implemented in our machine, in central.

* Unwinding is been controlled by Powder Brake with Load cell .

* Inbuilt Edge guiding trolley is fitted in our machine.

* For smooth Rewinding , Lay-on Roller is installed.

* Unwind & Rewind Air shafts.

* One AC motors with Drive providing for the most accurate winding tension control

* Electric Edge Guide System. Load Cell With Tentation Controller System. Actuator Movement + - 50 mm.

Option

* Printing Jet Hand Stand

* Stroboscope
